Fully Automatic High-Viscosity Jam Filling Production Line

Optimize your food production with Shuanghai’s integrated jam bottling line. Engineered for viscous products like jam, honey, and peanut butter, our system ensures ±0.5% filling accuracy and zero-drip operation, maximizing your ROI ...

Optimize your food production with Shuanghai’s integrated jam bottling line. Engineered for viscous

products like jam, honey, and peanut butter, our system ensures ±0.5% filling accuracy and zero-drip

operation, maximizing your ROI and product consistency.

1. 3D Production Line Layout

2. Core Advantages


Precision & Waste Reduction	Smart Factory Control	Extreme Versatility

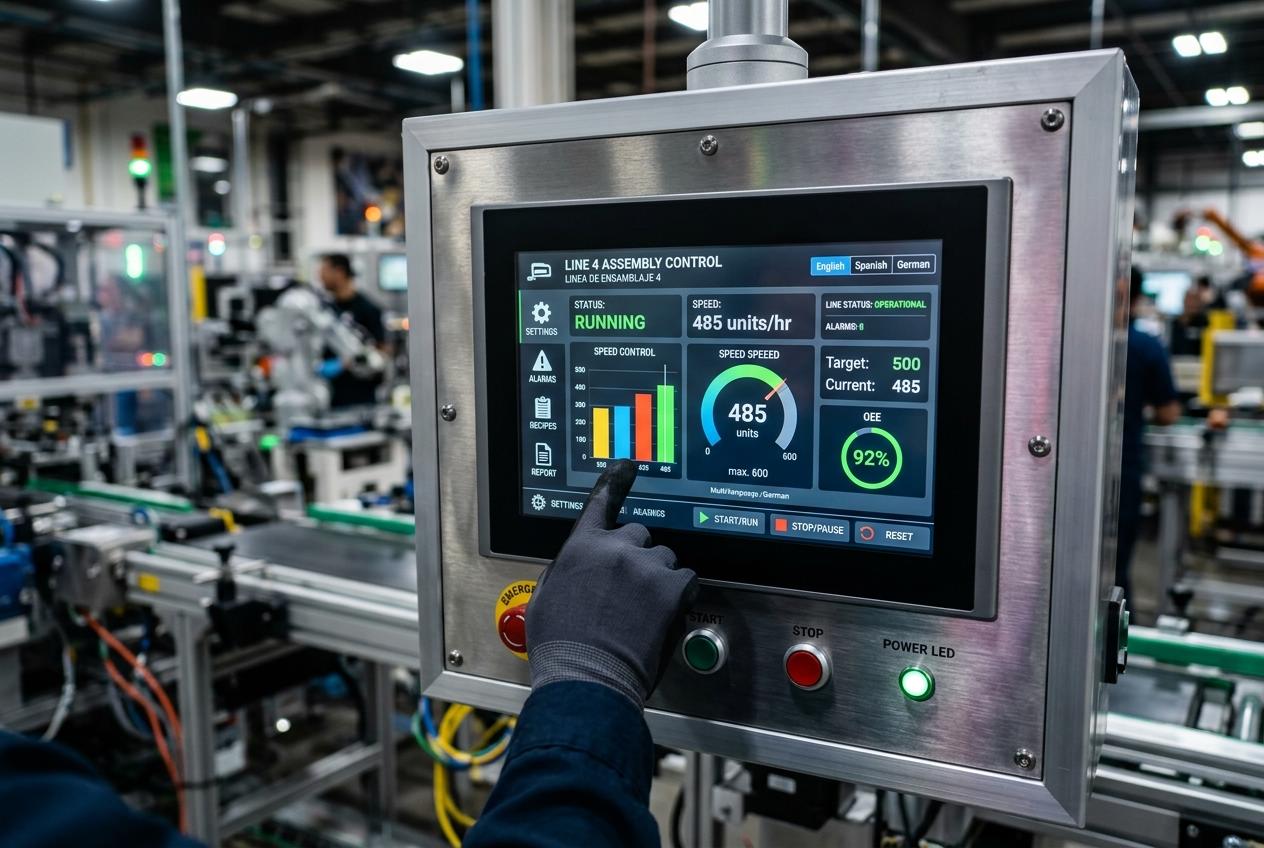

Advanced piston filling with ±0.5% accuracy.	Siemens PLC with multi-touch support.	Handles glass, PET, and metal cans.

3. Integrated Production Workflow

1. Automatic Bottle Handling: Unscrambling and rinsing.

2. Volumetric Piston Filling: SUS316L precision nozzles.

3. Dynamic Checkweighing: Real-time rejection system.

4. Precision Capping: High-speed reliability.

5. Smart Labeling & Coding: Laser lot-coding.

6. End-of-Line Automation: Case packing & sealing.

4. Technical Specifications

Specification	Technical Details
Filling Volume Range	50ml - 1000ml (Customizable)
Production Speed	20 - 60 bottles/min
Filling Accuracy	≤ ±0.5%
Air Consumption	0.6 - 0.8 MPa
Material Compliance	Food Grade SUS304 / SUS316L
Control System	Siemens PLC / Weinview / Schneider

5. Professional Engineering Schematic

Precision-detailed CAD layout showing technical workflow and module integration.
