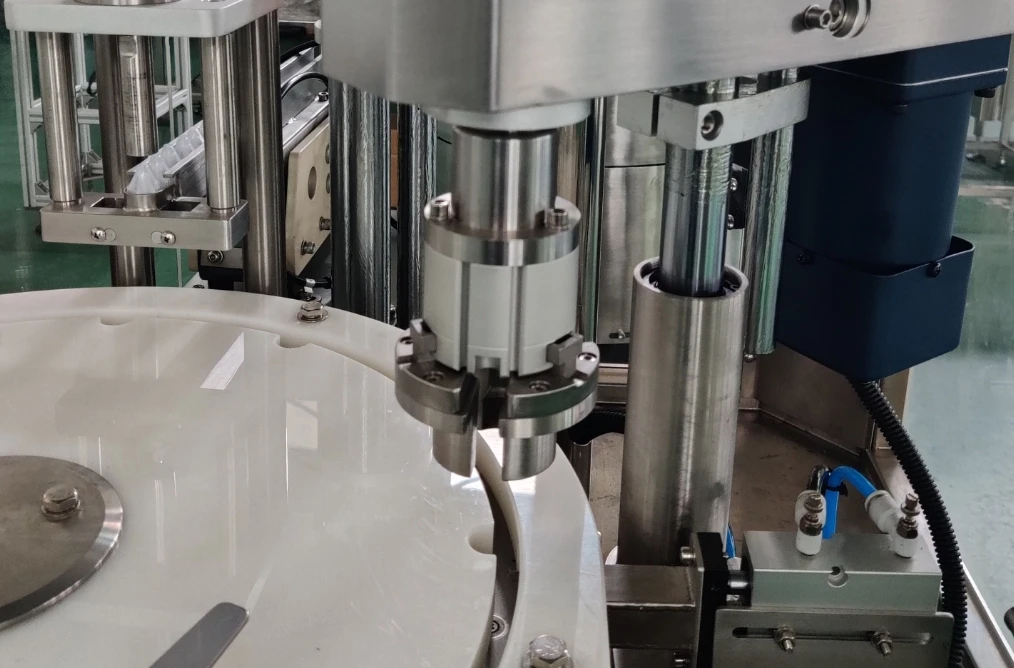

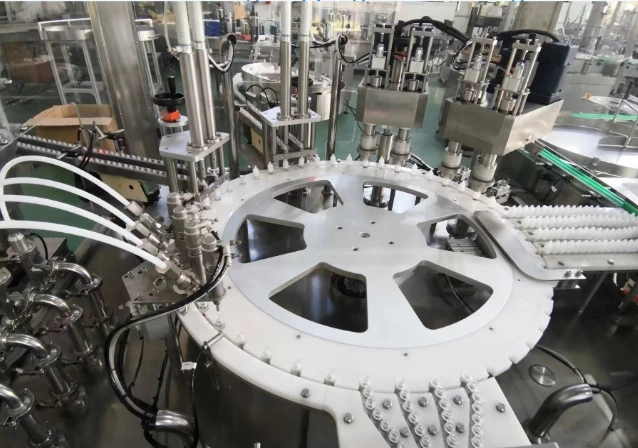

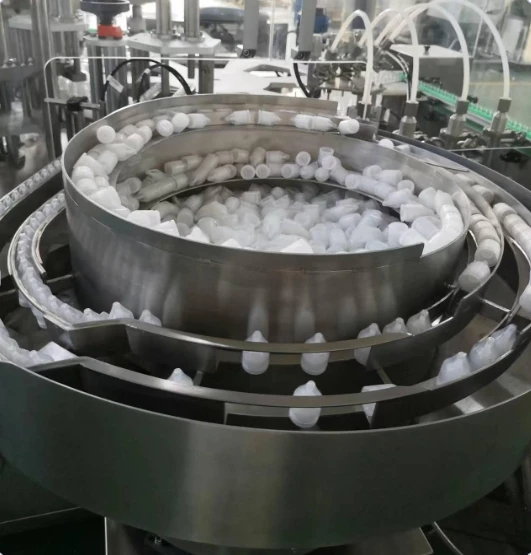

This fully-automatic 10-120 ml line is purpose-built for Chubby Gorilla bottles, delivering flawless filling of vegetable glycerin, hemp oil or essential oils. Four to twelve servo-piston heads dose under negative pressure with ≤±1 % accuracy—no foam, no drip—while a magnetic-torque capper secures droppers or child-proof caps at ≥98 % success. Bottles are automatically unscrambled, filled, capped and labeled in one compact footprint (L2500×W1500×H1850 mm, 2.2 kW). PLC & HMI store recipes for 90-second changeovers, 3,000-3,600 bph output. Direct factory, free remote commissioning, two-year warranty—the smart upgrade for clean, high-speed packaging of e-liquids, aromatherapy and CBD products.



Product |
Filling machine production line |
Technics |
Welding, assembling |
Filling Volume |
10-120ml |
Application |
The whole machine adopts Siemens PLC and touch screen control system |
Filling Precision |
±1% |
Power supply |
Three-phase five-wire system 380V/50Hz |
Power rate |
5.5 KW |
Production speed |
30-40 B/M |
Capacity |
2000-4000 BPH |
OEM |
Accept |
Eertification |
SGS,ROHS |
