Perfume Filling Production Line
Home> Perfume Filling Production Line
High-Accuracy Automatic Perfume Filling Machine Liquid Oil Spray Bottle Filling Sealing Machine
High-Accuracy Automatic Perfume Filling Machine Liquid Oil Spray Bottle Filling Sealing Machine
High-Accuracy Automatic Perfume Filling Machine Liquid Oil Spray Bottle Filling Sealing Machine
High-Accuracy Automatic Perfume Filling Machine Liquid Oil Spray Bottle Filling Sealing Machine
High-Accuracy Automatic Perfume Filling Machine Liquid Oil Spray Bottle Filling Sealing Machine
High-Accuracy Automatic Perfume Filling Machine Liquid Oil Spray Bottle Filling Sealing Machine
High-Accuracy Automatic Perfume Filling Machine Liquid Oil Spray Bottle Filling Sealing Machine
High-Accuracy Automatic Perfume Filling Machine Liquid Oil Spray Bottle Filling Sealing Machine
High-Accuracy Automatic Perfume Filling Machine Liquid Oil Spray Bottle Filling Sealing Machine
High-Accuracy Automatic Perfume Filling Machine Liquid Oil Spray Bottle Filling Sealing Machine
High-Accuracy Automatic Perfume Filling Machine Liquid Oil Spray Bottle Filling Sealing Machine
High-Accuracy Automatic Perfume Filling Machine Liquid Oil Spray Bottle Filling Sealing Machine

High-Accuracy Automatic Perfume Filling Machine Liquid Oil Spray Bottle Filling Sealing Machine

High-accuracy fully-auto perfume filler-sealer for spray or oil bottles: servo magnetic pump with negative pressure dosing ≥99.7 %, 10-150 ml adjustable, 12-18 heads, 20-25 bpm; auto bottle feed, air rinse, no-bottle-no-fill, 316L SS frame, GMP/FDA compliant; integrated automatic crimping/capping, touch HMI & remote monitoring, low waste, easy clean—an all-in-one solution for high-speed hygienic perfume, fragrance or essential-oil production.

Get a Quote

Introduction

High-Accuracy Automatic Perfume Filling Machine Liquid Oil Spray Bottle Filling Sealing Machine manufacture
High-Accuracy Automatic Perfume Filling Machine Liquid Oil Spray Bottle Filling Sealing Machine manufacture
Product
Liquid spray filling machine line
Model
SH-LFM-2
Applicable specifications
30-100ml
technics
welding, assembling
application
According to the different characteristics of customer materials, we can provide different filling methods
Filling Precision
±1%
power supply
380V/50Hz
Power rate
3kw
production speed
30-60 B/M
Dimension
6500mm×2000mm×2250mm
OEM
accept
certification
SGS,ROHS
High-Accuracy Automatic Perfume Filling Machine Liquid Oil Spray Bottle Filling Sealing Machine details

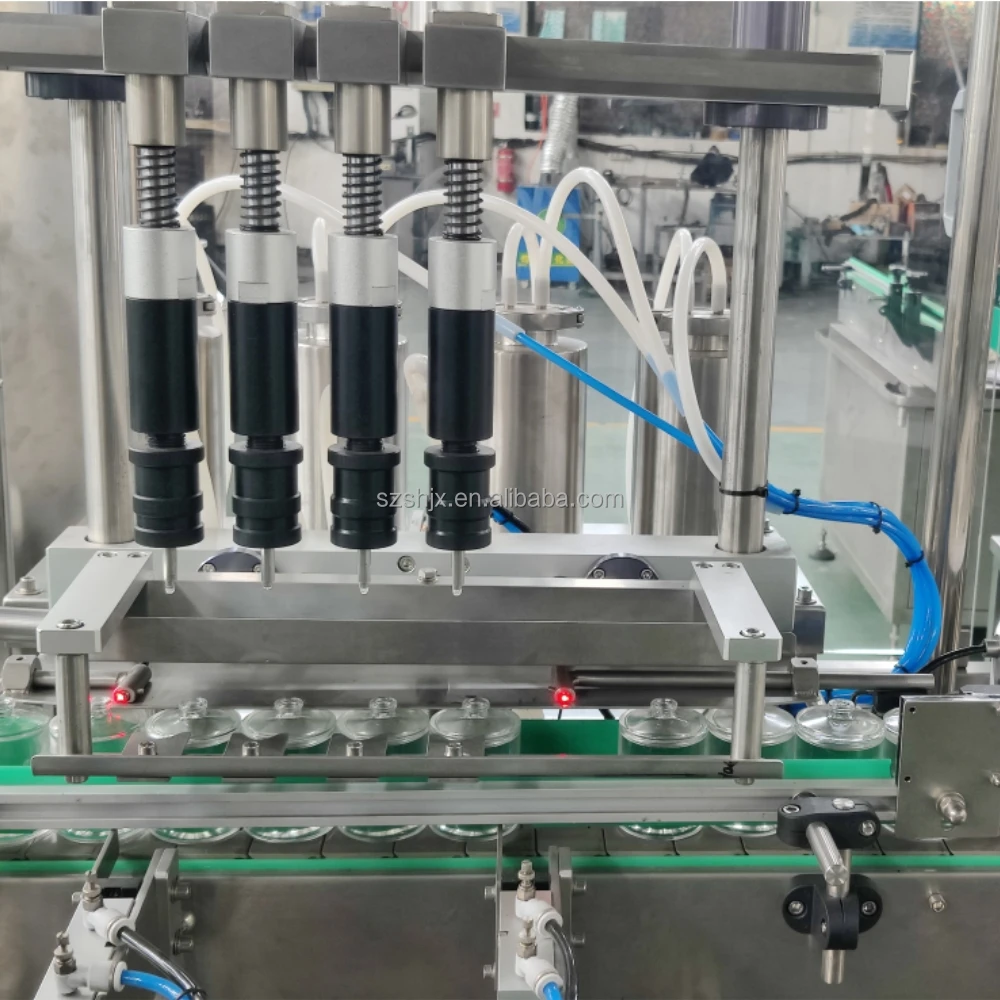

Filling head
High-Accuracy Automatic Perfume Filling Machine Liquid Oil Spray Bottle Filling Sealing Machine details
Nozzle unscrambler
High-Accuracy Automatic Perfume Filling Machine Liquid Oil Spray Bottle Filling Sealing Machine details

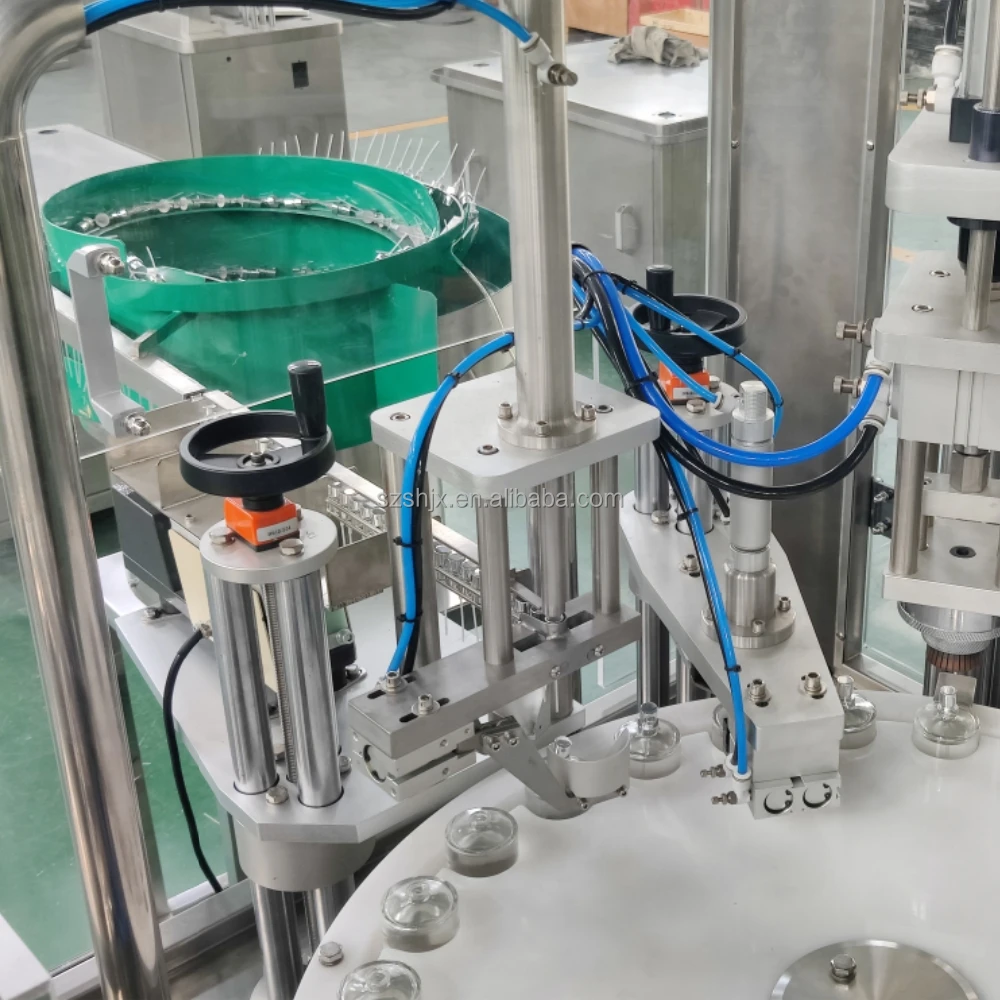

Capping head

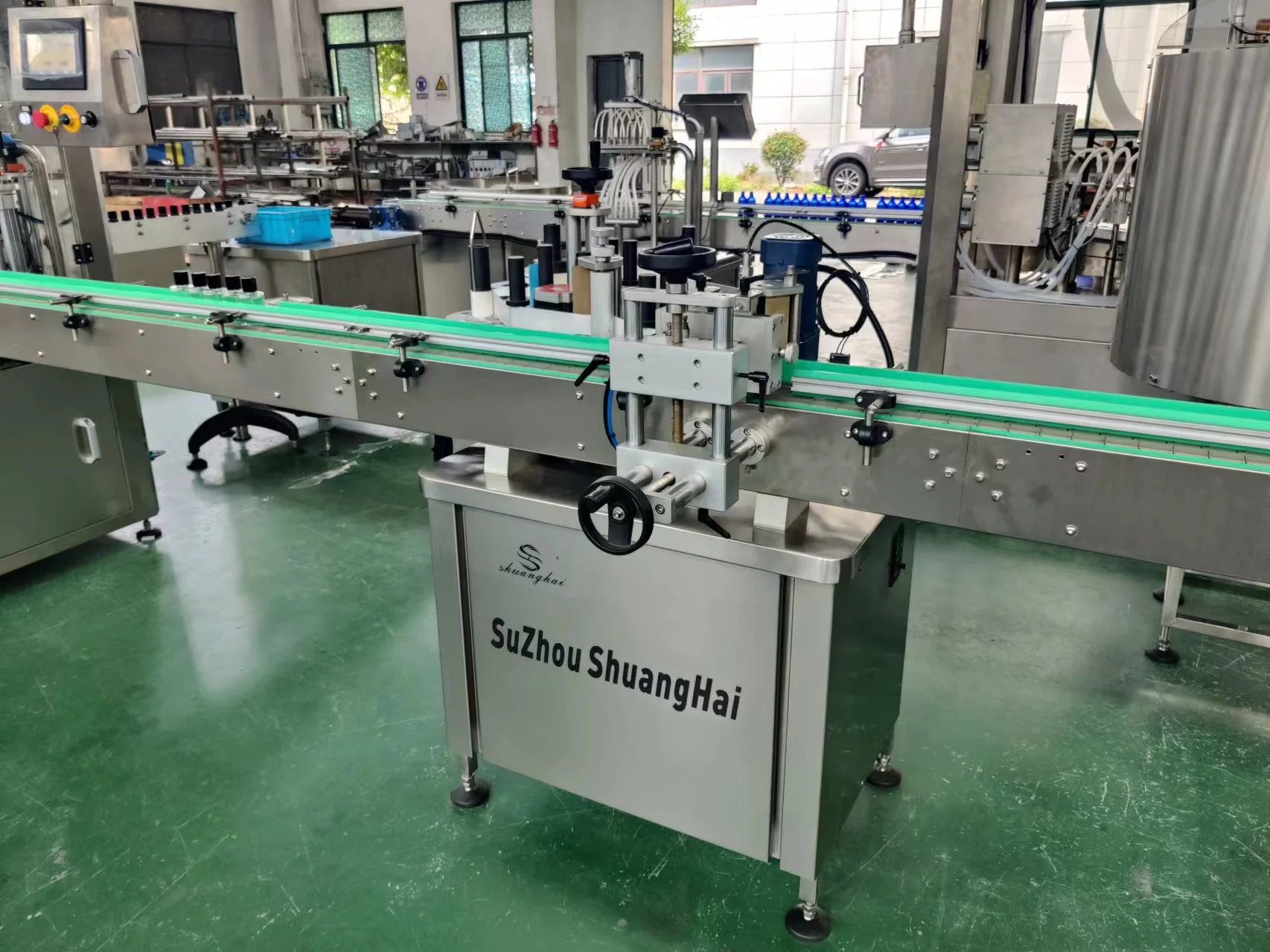

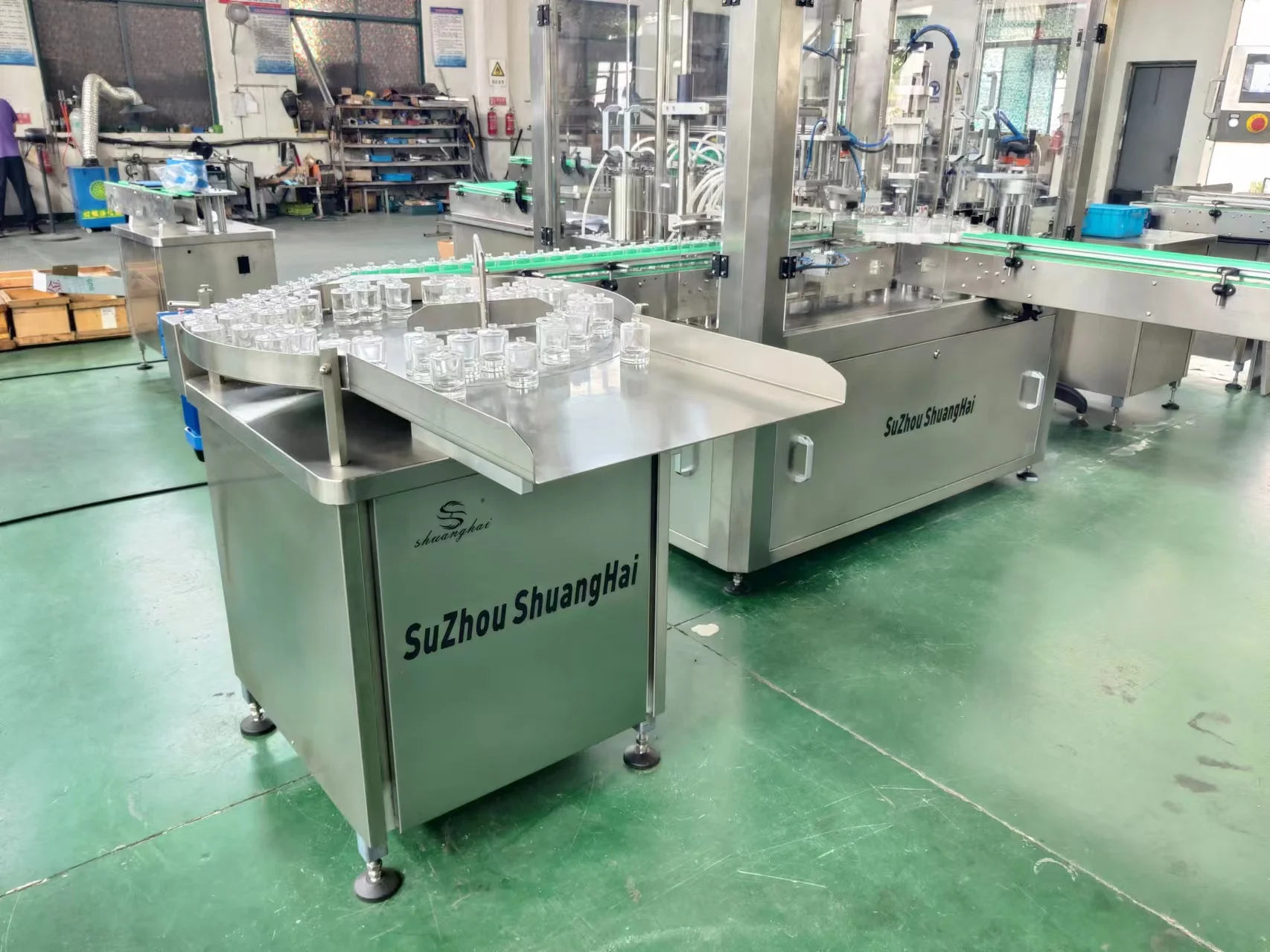

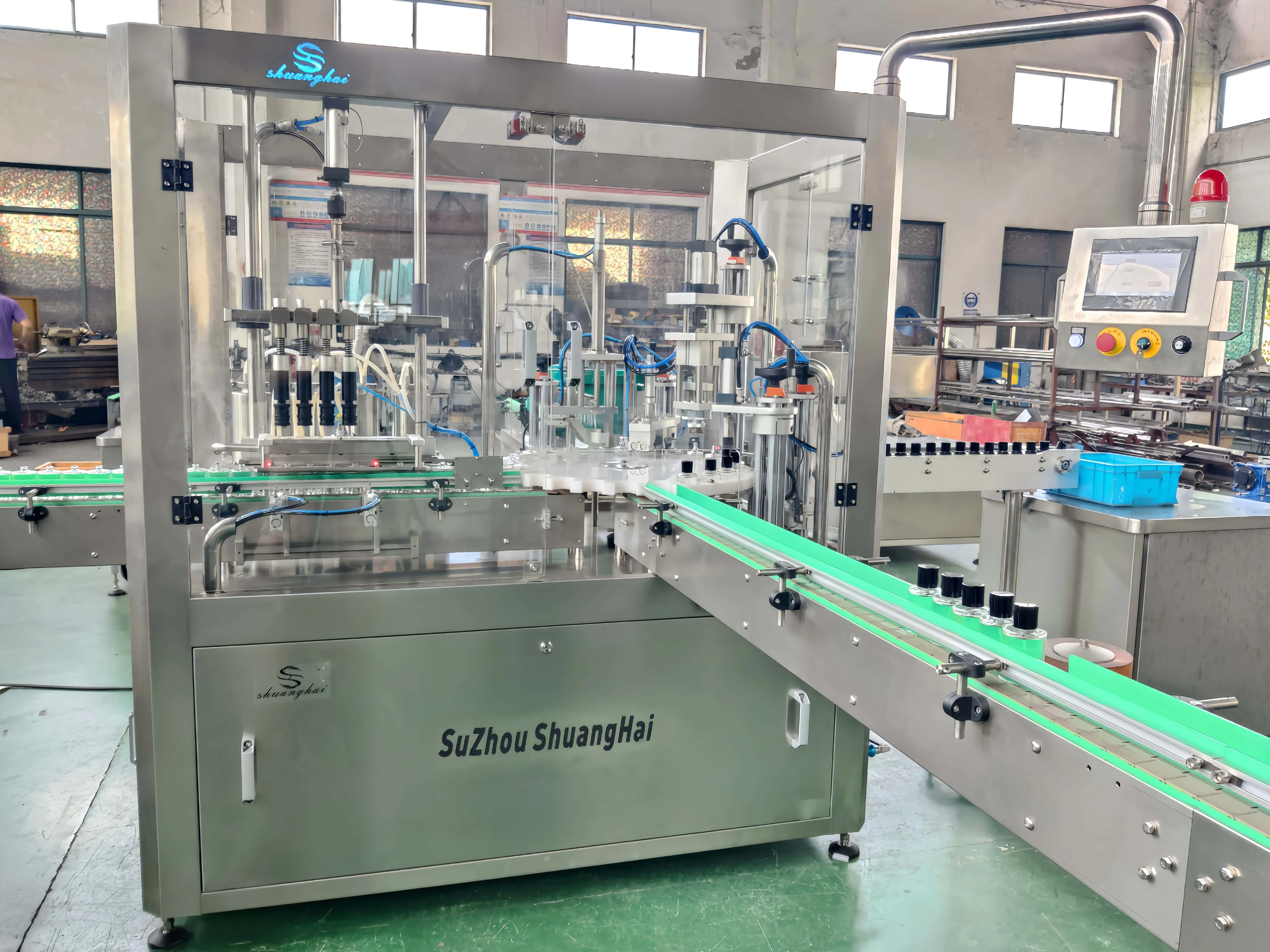

This production line is mainly used for fully automatic assembly line operations of 5ml-100ml spray products. The work flow is that empty bottles enter the fully automatic bottle unscrambler → filling and capping machine → labeling machine → completed.

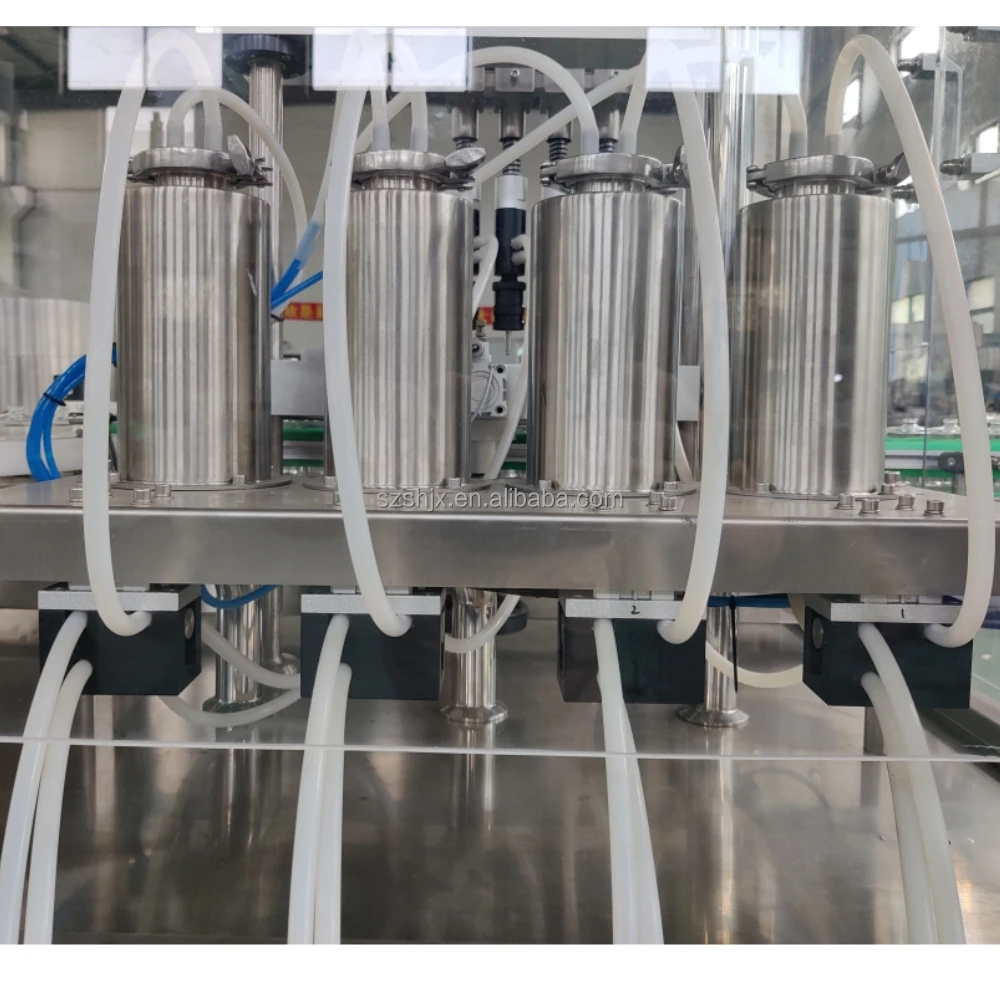

The biggest advantage of the entire line is its linear connection, compact structure and small footprint. The filling adopts multi-channel peristaltic pump or ceramic plunger pump, which has no pulse phenomenon, no dripping and no splashing. The falling valve has a rotating and tracking type upper plug and a progressive press-in structure. The falling valve is stable and the pass rate is high. The frame of this machine is made of 304 stainless steel, and the liquid contact parts are made of 316L stainless steel and PTFE materials, which meets hygienic requirements.
High-Accuracy Automatic Perfume Filling Machine Liquid Oil Spray Bottle Filling Sealing Machine manufacture
The entire line adopts PLC fully automatic linkage control, human-machine interface setting parameter operation, and frequency
conversion speed regulation. In addition, there are no bottles, no filling, no falling valves and screw caps, completely
eliminating the problem of product and equipment contamination.
High-Accuracy Automatic Perfume Filling Machine Liquid Oil Spray Bottle Filling Sealing Machine details
